ComWorth introduces new Portable series for SwiftWing SIRIUS Capture system with 1G, 10G or 40G interfaces

ComWorth introduces new Portable series for SwiftWing SIRIUS Capture system with 1G, 10G or 40G interfaces

The SwiftWing SIRIUS Portable series is a new addition to the SwiftWing SIRIUS Line-rate Capture System family. The new SIRIUS Portable series provides a convenient way for on-site packet capture and real-time monitoring of traffic conditions. Capable of ensuring up to 4Gbps line-rate capture and with a storage capacity of 8TB; the SIRIUS Portable series is an ideal solution for on-site engineers and on-demand packet capture.



Technical Specifications

4G model 10G model 40G model
CPU Dual Intel Quad Core Xeon
Memory 24 GB

Storage

8 TB 4TB SSD
RAID setup RAID 0

Dimension

(WxHxD mm)

421 x 379 x 141
Weight 12 Kg
Capture configuration 2 channels – 4Gbps

1 channel – 4Gbps

Single channel (Full duplex) Single port (Half duplex)
Capture interfaces

4 x SFP

(1000BASE-SX

or 1000BASE-LX

or 10/100/1000BASE-T)

2 x SFP+

(10Gigabit Ethernet)

40GBASE-SR4

(QSFP+)

Display Integrated 17″ WUXGA+ LDC up to 1920×1200
Standard interfaces 4 x USB 2.0 ports, 2 x 10/100/1000 Ethernet
ports, HDMI output for external display
Included accessories Soft Carrying Case, USB Keyboard & mouse



Images

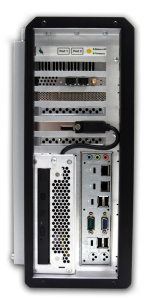

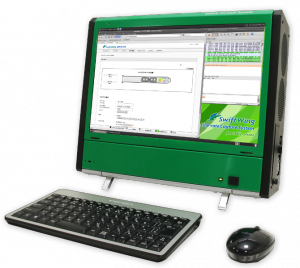

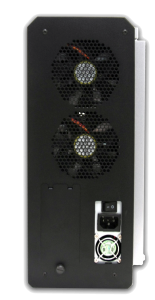

Sirius Portable Front View Sirius portable left side view SIRIUS portable right side
Front view Side views
