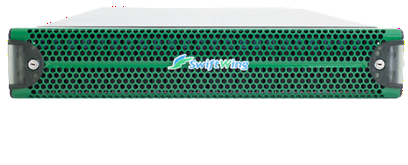

This product is a dedicated, real-time analysis solution designed specifically for SMPTE ST 2110 and ST 2022-7 standards. By continuously monitoring traffic flowing through your media interfaces (supporting 10G to 100G ports), it provides deep, detailed analysis of video, audio, ANC, and PTP status—all with zero impact on your active network.
Furthermore, when an anomaly is detected, a single click seamlessly integrates with our companion solution, Sirius NDR, to instantly replay and visualize the exact signal from that moment. This drastically streamlines issue replication and root-cause analysis. By bridging the gap between analysis and replication, this unified solution offers complete quality assurance for IP broadcasting.

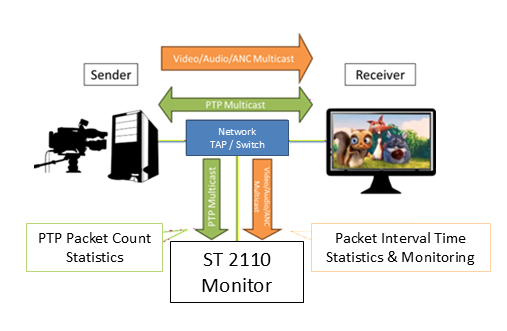

Seamless Monitoring via Network TAPs/Switches Traffic from the target monitoring source is copied using a network TAP or switch mirror port and delivered directly to the device.
Hitless (ST 2022-7) Configuration For Hitless (SMPTE ST 2022-7) redundant setups, the identical content streams from Path A and Path B are routed to their respective dedicated ports for simultaneous analysis.
Multi-Stream Monitoring via Aggregation If you need to monitor multiple distinct content streams, you can aggregate the traffic into a single feed. This allows you to simultaneously monitor three or more streams using just two ports. Individual streams can then be isolated, displayed, and analyzed by specifying their respective IP addresses.

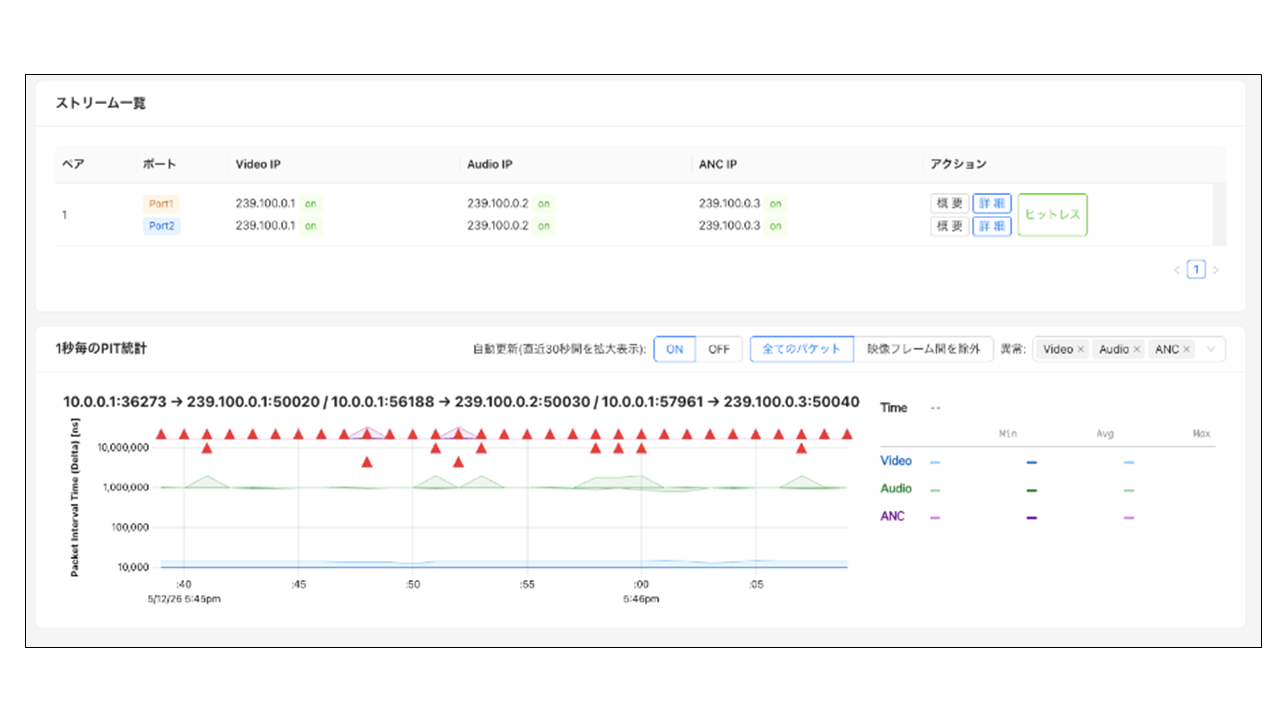

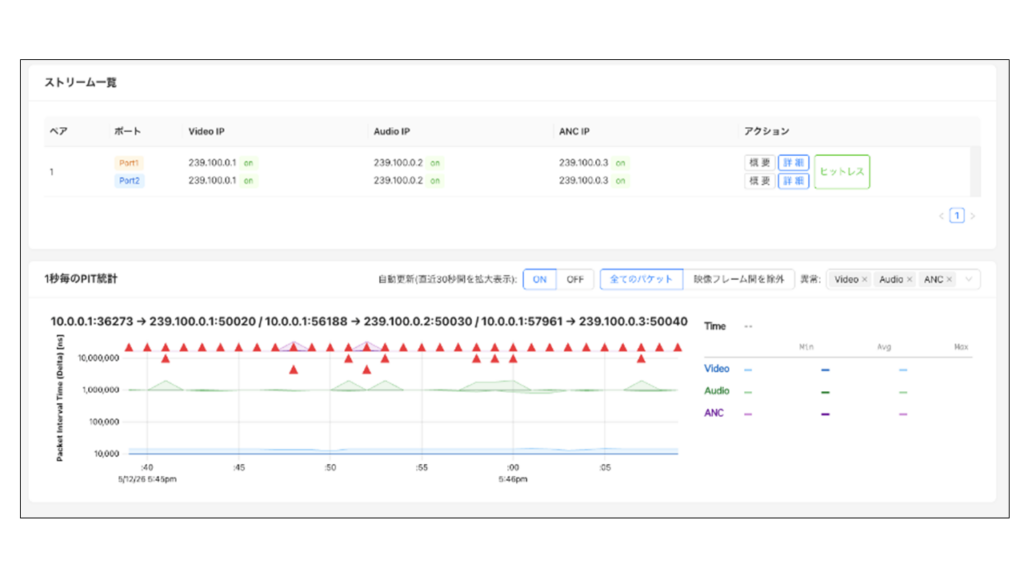

Video / Audio / ANC (Ancillary Data) Analysis

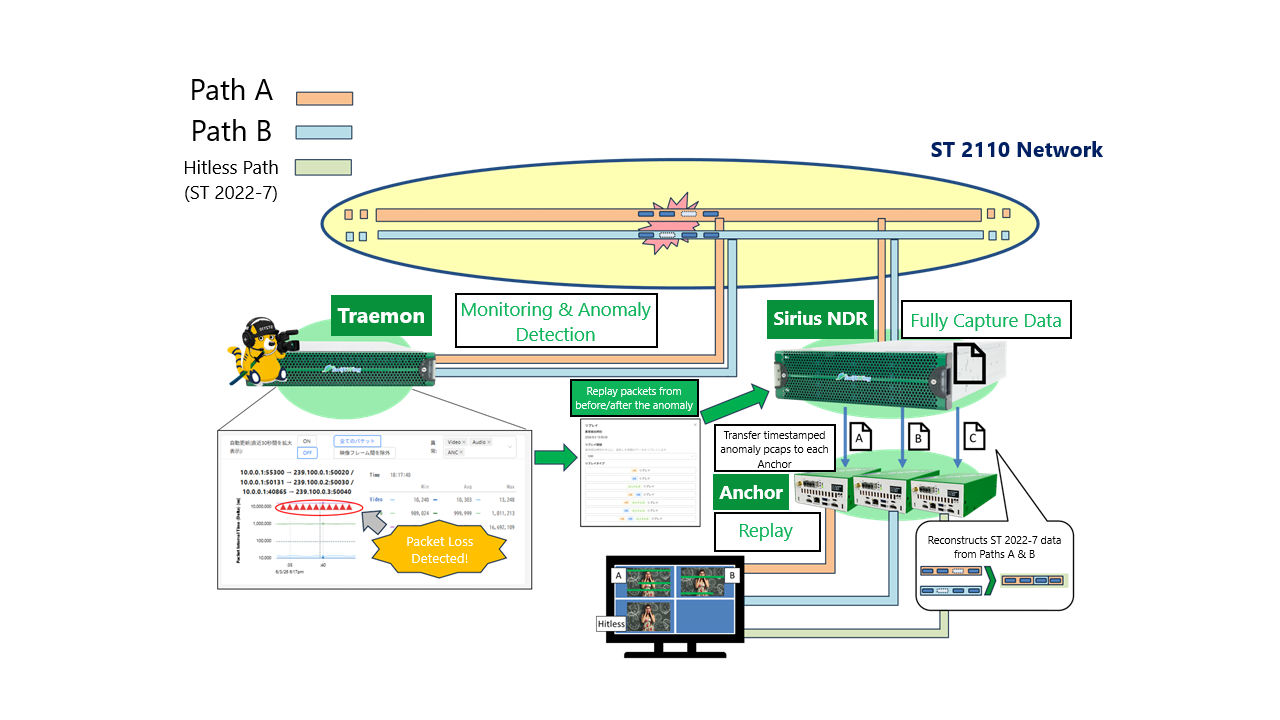

Through the integration of Traemon ST 2110 and Sirius NDR, you can monitor ST 2022-7 networks and perform packet captures. This enables you to detect and analyze network issues such as packet loss, latency, and out-of-order packet delivery.
Furthermore, with Sirius's standard, built-in, world-first ST 2110 Replay Function (Patent Pending), you can replicate network events at any given time.
This allows you to verify how other devices behave under the exact same environmental conditions.
