SwiftWing Procyon FT

SwiftWing Network Monitoring & Capturing Network Capture & Data Storage



Anything less is not meaningful, anything more is redundant.
Originating from Ota, Tokyo, the SwiftWing Series has enjoyed great success since its introduction in 2003.

The Procyon FT series is commonly referred to as packet broker.
Ethernet frames forwarded to each port from an external device can be forwarded to any multiple ports in the device.
Capabilities of filtering, VLAN address modification, addition, and deletion can be easily performed via the GUI by using the header contents in the packet as a key.
In addition, by switching from the packet broker function to L2/L3 mode, it becomes possible to forward packets using routing protocols, etc., and it can also be used as an L2/L3 switch.
It has a send-back warranty for 5 year.

    Easy operation with Web GUI
    • Intuitive and simple user interface with just mouse control for most of the major settings such as port groups, paths, statistics, etc.
    • Operation screens are bilingual in English and Japanese
    • Switch between GUI and CLI modes
    L2/L3 Mode Switch
    Proxy ARP and GRE Tunneling Functions
    Remote Management

    • SNMP monitoring（port status, trap）
    • Remote Syslog
    Filter Function
    • Ethernet Type
    • MAC Address
    • VLAN ID
    • IPv4, IPv6
    • MPLS, etc.
    Five years send-back warranty

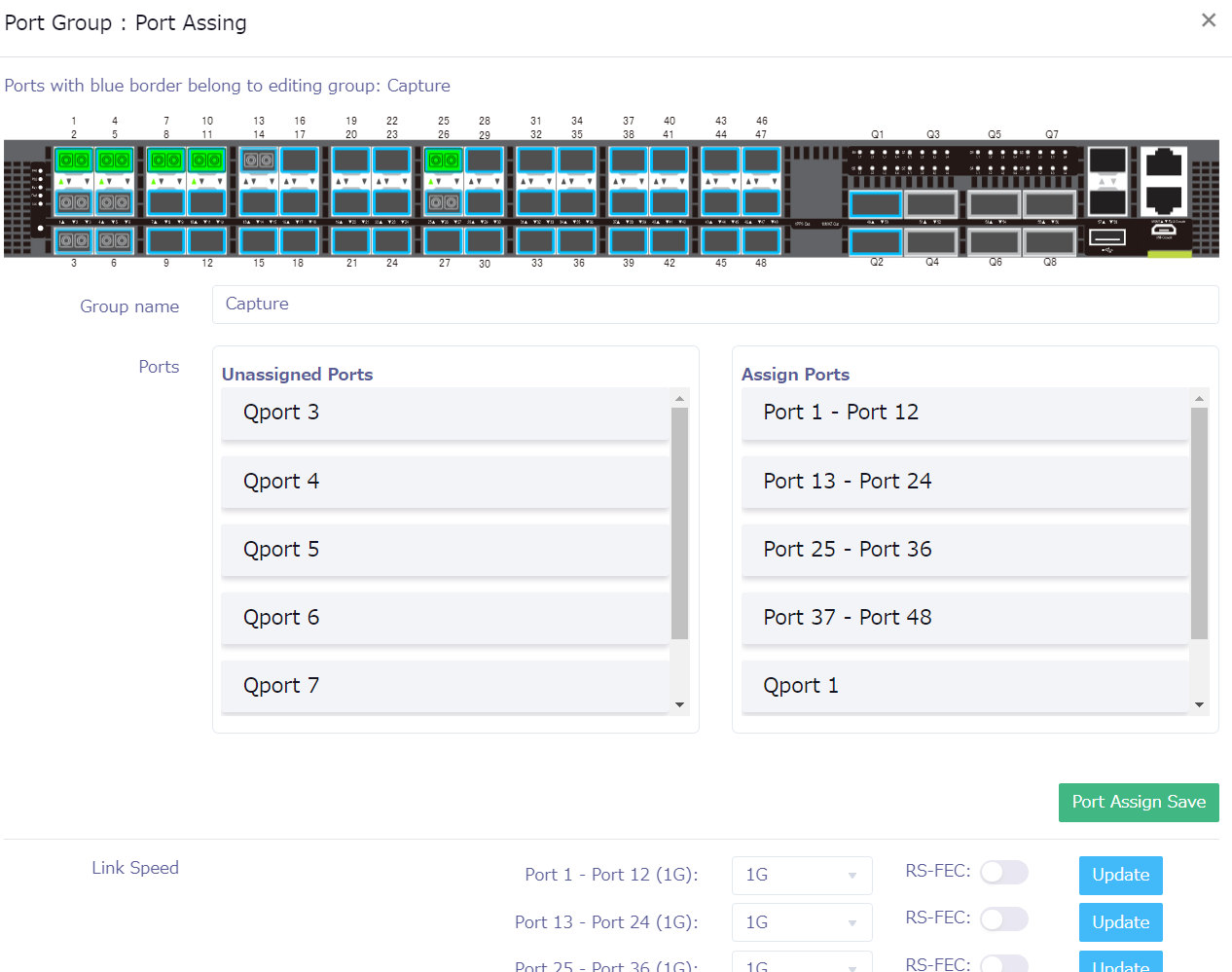

Port assing

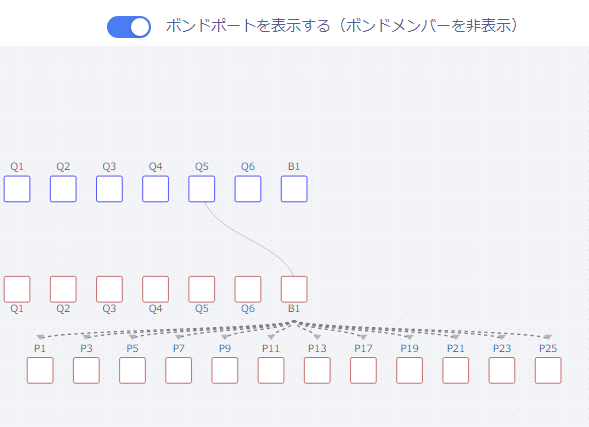

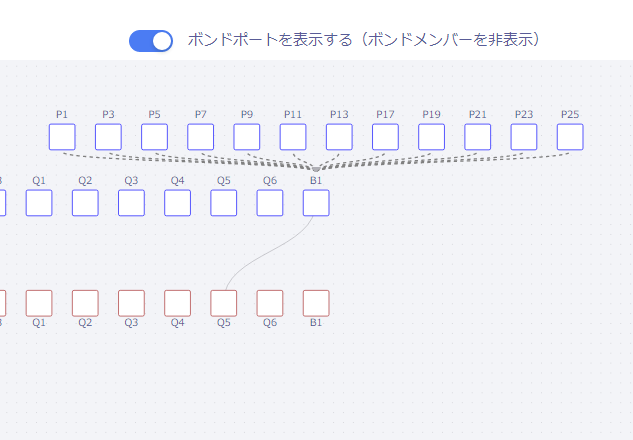

Create Network Port Bonds

Multiple ports can be displayed and configured at once. Both input and output ports can be configured.

bond-network-ports
bond-network-ports2
Path configuration

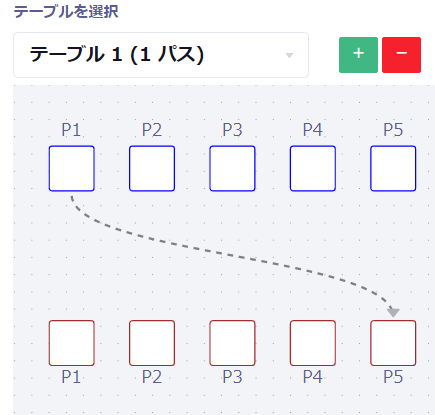

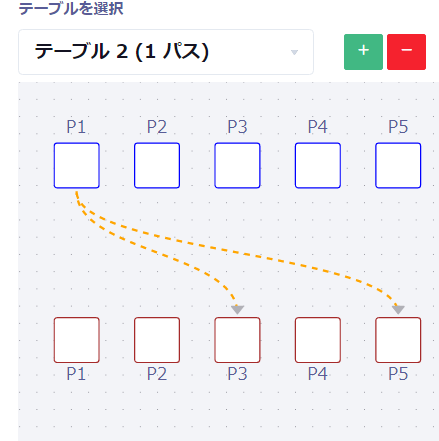

h5>Table Function

It is possible to assign multiple separate settings to the same path. (Output port filter conditions, VLAN tag replacement, Deletion, Addition)

table
table2

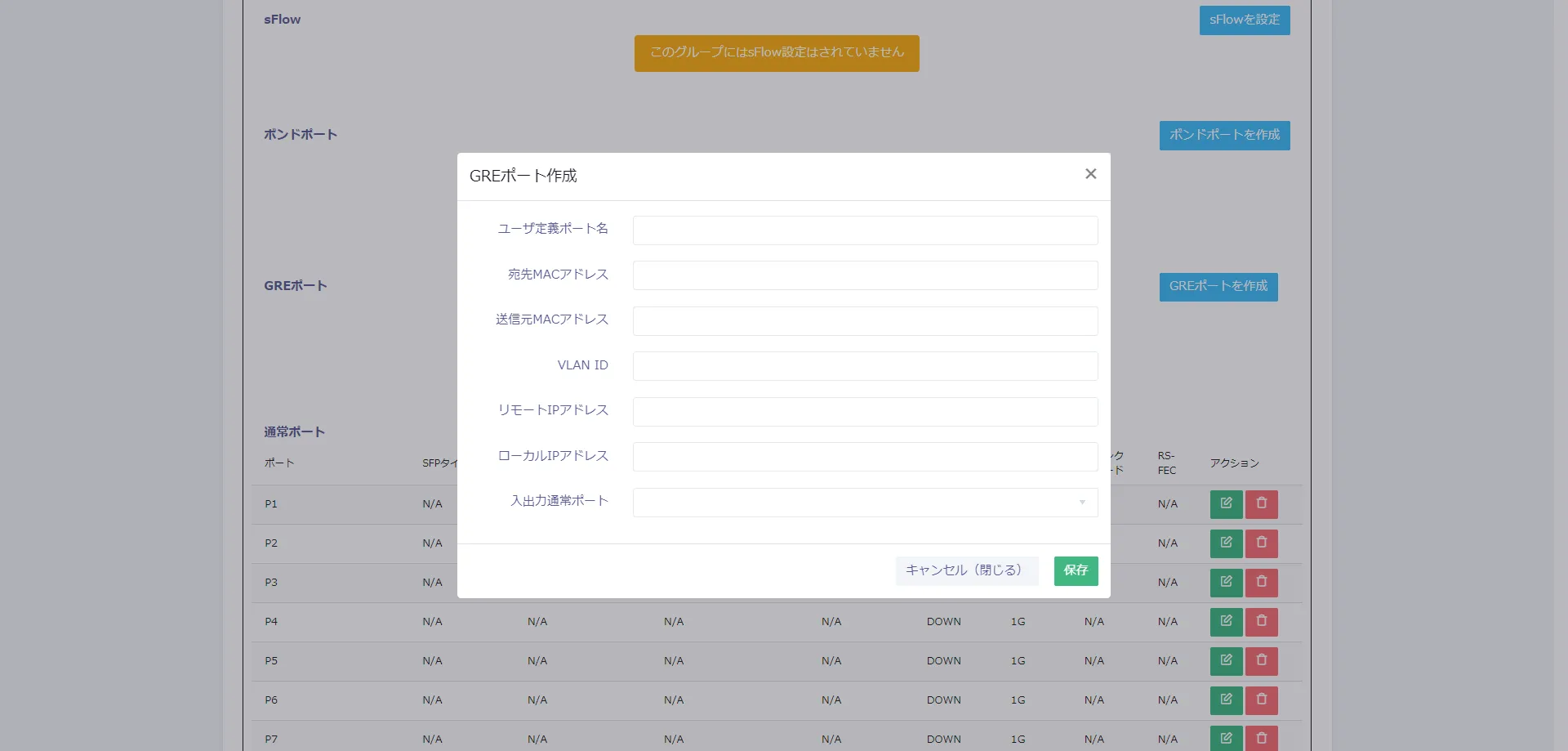

GRE Tunneling

Proxy ARP

Output port filter configration



Output port VLAN tag replace（ID,PCP）、delete/add actions

VLAN tag replace（ID,PCP）

VLAN tag delete/add

Statistics

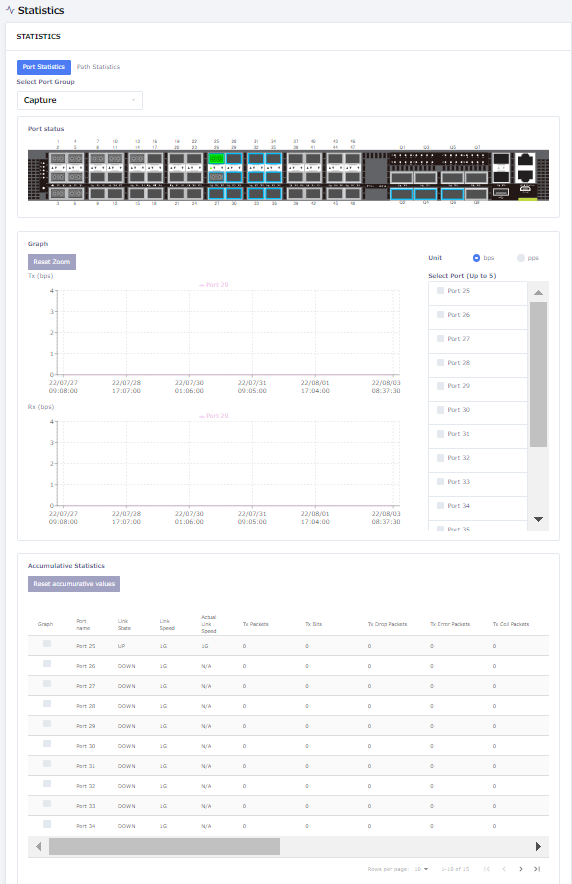

Input/output port statistics

Path statistics



System Management Functions

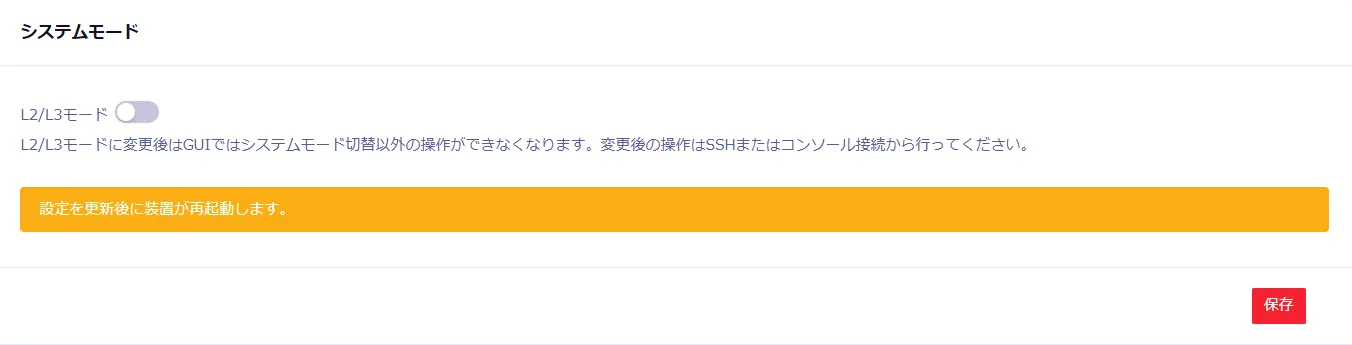

L2/L3 Mode Switch

SNMP Trap / Remote Syslog

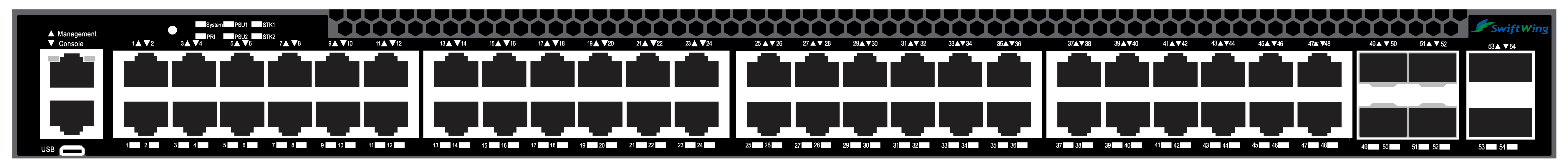

SW-48T-4X

RJ45(10M/100M/1G) x48ports＋SFP+(10G) x4ports

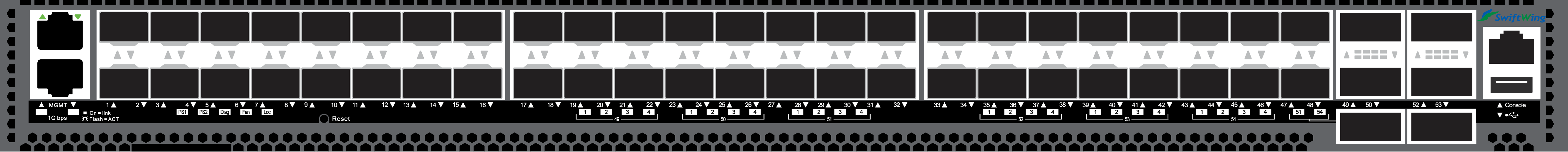

SW-48X-6Q28

SFP/SFP+(1G/10G) x48ports＋QSFP+(40G)/QSFP28(100G) x6ports

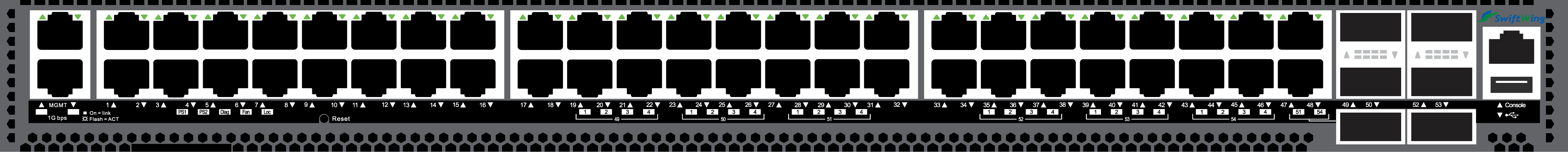

SW-48XT-6Q28

RJ45(1G/10G) x48ports＋QSFP+(40G)/QSFP28(100G) x6ports

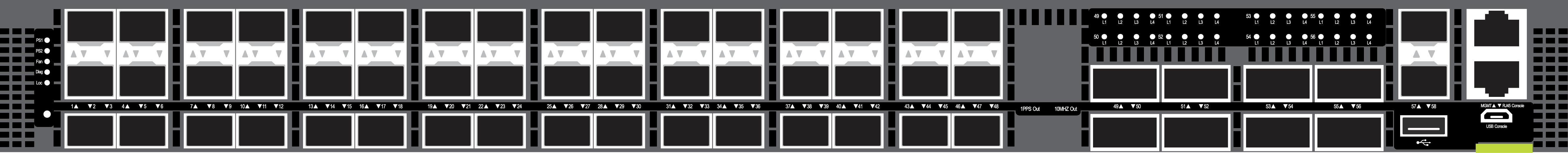

SW-48X25-8Q28

SFP/SFP+/SFP28(1G/10G/25G) x48ports＋ QSFP+/QSFP28 (40G/100G) x8ports

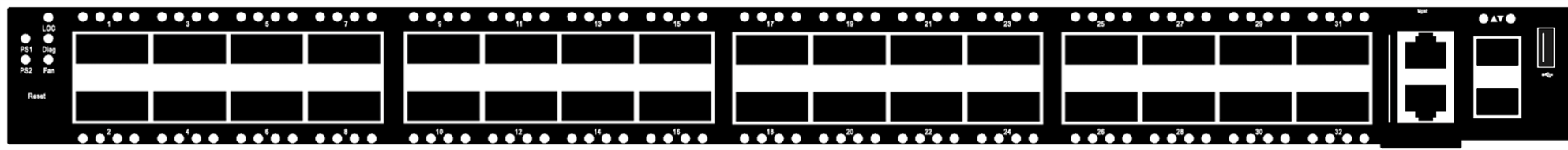

SW-32Q28

QSFP+/QSFP28 (40G/100G) x32ports

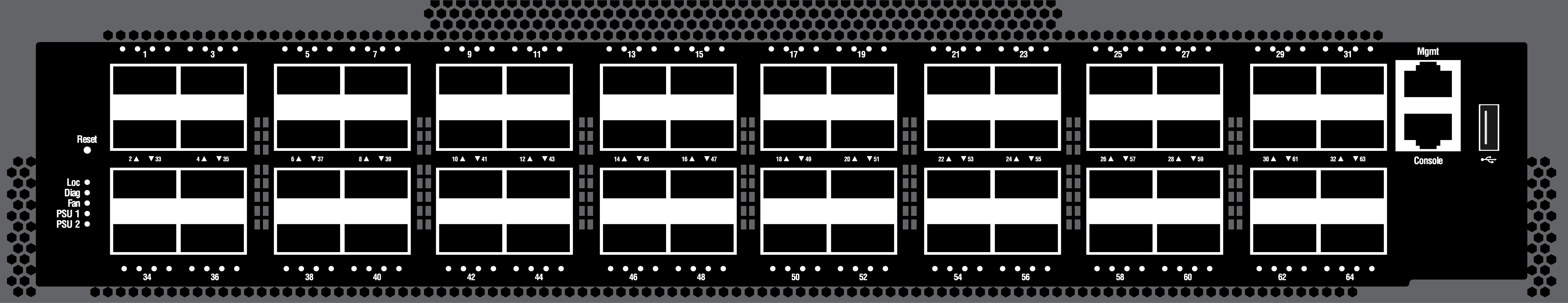

SW-64Q28

QSFP+/QSFP28 (40G/100G) x64ports
