XX-series™

All products within the XX-series ™ of PROFITAP are budget oriented solutions for consolidating Data Monitoring Traffic for versatile use with any kind of Analysis Appliances.

Designed for aggregation of multiple In-Line and/or Span inputs for Monitoring Tools its modularity offers a wide range of usage.

Serving up to 10GbE Monitoring Traffic to 10GbE Appliances.

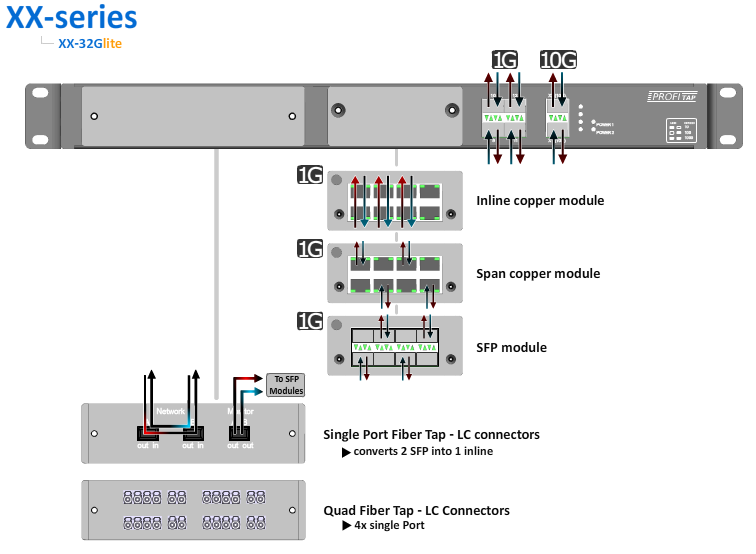

The XX-32Glite™ is PROFITAP’s interpretation of a budget oriented solutions for consolidating Data Monitoring Traffic.

By its base concept offering a smart connectivity, including failsafe In-Line Tapping, it fits perfectly into today’s so-called “Network Tool Farms”.

XX-32Glite™ connects to In-Line and SPAN in Copper as well as in Fiber interfaces creating the ultimate network connection.

Download XX-32Glite™ datasheet here.

Many to Any, Any to Many – monitoring multiple 1GbE Traffic with 10GbE tools or monitoring multiple 10GbE Traffic with 1GbE tools

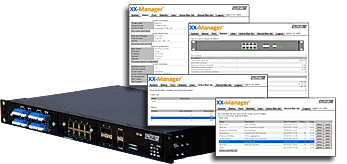

The XX-32G™ is PROFITAP’s interpretation of a budget oriented solutions for consolidating Data Monitoring Traffic with Management.

By its basic concept offering a smart connectivity, including failsafe In-Line Tapping, it fits perfectly into todays so called “Network Tool Farms”.

XX-32G™ includes XX-Manager™ , a GUI-driven Management System controlling Aggregation, Routing & Filtering & more on demand for such appliances.

XX-32G™ connects to In-Line and SPAN in Copper as well as in Fiber interfaces creating the ultimate network connection.

Download XX-32G™ datasheet here and special application here.

Serving up to 10GbE Monitoring Traffic to 10GbE Appliances.

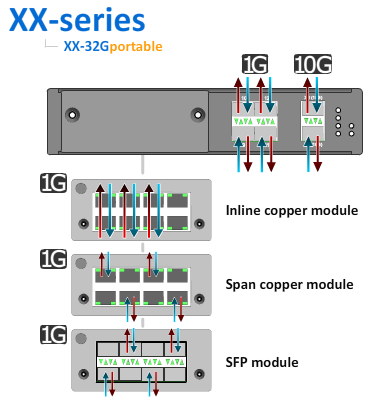

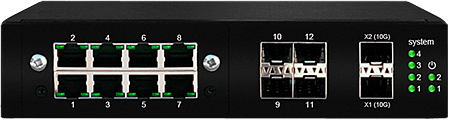

The XX-32Gportable™  is a smart solution, designed for consoldating of multiple 10GbE and 1GbE Span and/or 1GbE In-Line sources for Monitoring & Analysis Tools.

By its small footprint, made for maximum portability, it is operated by a desktop powersupplies and even offers redundancy by a second powersupply.

XX-32Gportable™ simplifies the task to monitor networks and makes such analyser tools and appliances more efficient.

Download XX-32Gportable™ datasheet here.

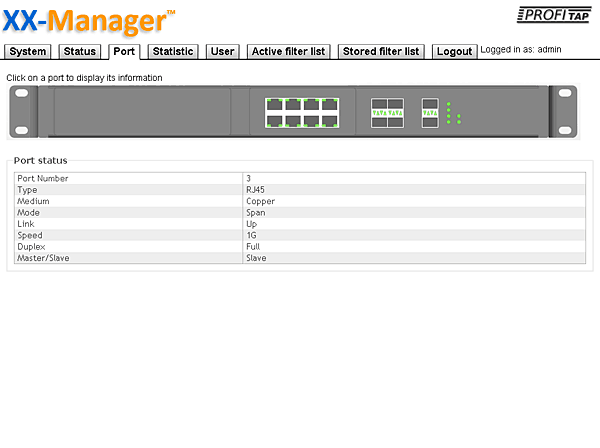

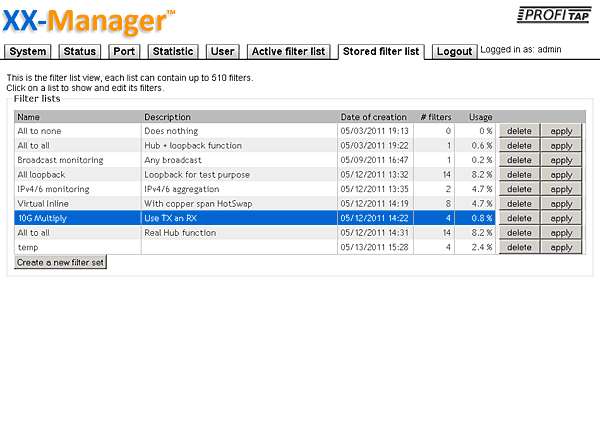

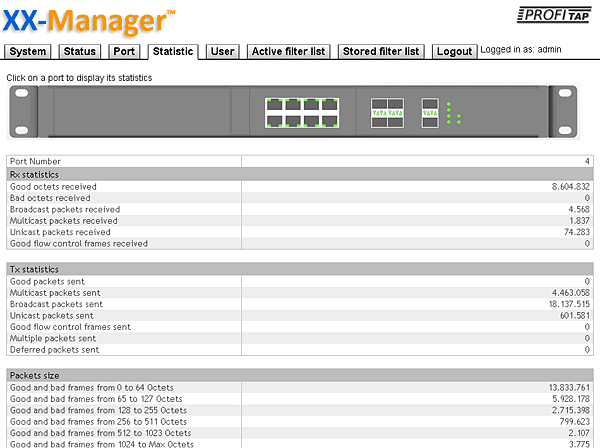

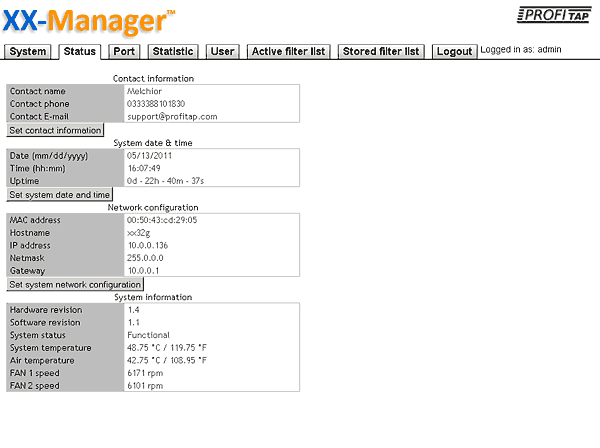

Screenshots of XX-Manager™
Click for full images.

• Allows a full control over 1GbE & 10GbE Network Traffic for monitoring by its inituitive GUI.
• Multiple Filter rules per port in any combination for various routing and filtering, duplication or replication and many more options can be configured by an innovative GUI to allow instant adaption to all kind of analysis.
• Designed for intuitive use, the user and focus on his main mission without studying extra manuals or need to spend extra time for setting up the test equipment
• An integrated archive gives quick access to establish filter scenarios on the fly or allow instant changes to ease meeting the current requirements.

Note: XX-Manager™ is included in XX-32G™.

XX-32Glite™ & XX-32G™

• Four (4) 1GbE SFP Ports
• Two (2) 10GbE SFP+ Ports
• Slot for connectivity module:
• Eight (8) 1GbE Copper Spans or
• Four (4) Copper In-Lines (or mix in-Line & Span) or eight (8) SFP Spans
• Slot for Fiber TAP – realizing up to four (4) failsafe in-line tappings for further SFP Span Module Intake
• Link and activity LEDs shows state on all ports
• Redundant, international power supply
• Easy servicable fan unit
• Low power consumption

XX-32Gportable™

• Four (4) 1GbE SFP Ports
• Two (2) 10GbE SFP+ Ports
• Slot for connectivity module:
• Eight (8) 1GbE Copper Spans or
• Four (4) Copper In-Lines (or mix In-Line & Span) or eight (8) SFP Span
• Link and activity LEDs shows state on all ports
• Redundant, international power supply
• Easy serviceable fan unit
• Low power consumption
