Standalone Media Converters
Gigabit Ethernet
GFT-10XX – Standard UTP-to-Fiber: 1000BASE-T to 1000BASE-SX/LX/ZX
GFT-1055E – Extended Reach Multi-Mode over standard fiber
  • 1000BASE-T Autonegotiation for Full-duplex and Half-duplex operation with Flow-Control and;
  • Switch selectable, Fiber-Port Autonegotiation for common, end-to-end Flow-Control, and link awareness, or for blind connection to Gigabit fiber ports on older switches
  • Internal Auto-sensing, MDI / MDI-X crossover switch for
  • Network Interface Card or Switch connections
  • Dual power jacks for connecting optional, redundant power supply
  • Optional:  UK, Continental European power
  • Auto-sensing 100/240 VAC power supply
  • Transparent to Flow-Control commands such as PAUSE
  • A full array of status / diagnostic LEDs
GFT-1037A and GFT-1037 – UTP-to-Single-Fiber, Bi-Directional Single-Mode
  • 1000BASE-T Autonegotiation for Full-duplex and Half-duplex operation with Flow-Control and;
  • Switch selectable, Fiber-Port Autonegotiation for common, end-to-end Flow-Control, and link awareness, or for blind connection to Gigabit fiber ports on older switches
  • Internal Auto-sensing, MDI / MDI-X crossover switch for Network Interface Card or Switch connections
  • Uses Single-Fiber, single-mode connectors operating on 1550 ηm and 1310 ηm wavelengths
  • Dual power jacks for connecting optional, redundant power supply
  • Optional:  UK, Continental European power
  • Auto-sensing 100/240 VAC power supply
  • Transparent to Flow-Control commands such as PAUSE
  • A full array of status / diagnostic LEDs
GFT-10W-XX – UTP to Single-mode with ITU-specified CWDM wavelength
  • 1000BASE-T Autonegotiation for Full-duplex and Half-duplex operation with Flow-Control and;
  • Switch selectable, Fiber-Port Autonegotiation for common, end-to-end Flow-Control, and link awareness, or for blind connection to Gigabit fiber ports on older switches
  • Internal Auto-sensing, MDI / MDI-X crossover switch for Network Interface Card or Switch connections
  • Dual power jacks for connecting optional, redundant power supply
  • Optional:  UK, Continental European power
  • Auto-sensing 100/240 VAC power supply
  • Transmits individual ITU specified CWDM wavelengths
  • Transparent to Flow-Control commands such as PAUSE
  • A full array of status / diagnostic LEDs

Click here for Gigabit Ethernet Copper-to-Fiber datasheet.

Fast Ethernet
CFT-206X – Standard multi-mode & single-mode series: 100BASE-TX to 100BASE-FX
  • Switch for Hard-Setting Full-Duplex or 100BASE-TX Autonegotiation for 100 Mbs, Full and Half-duplex operation
  • Internal Auto-sensing, MDI / MDI-X crossover switch for proper Network Interface Card or Switch connections
  • Switch enabled Link Fault Signaling (LFS) – Forwards lost link awareness to each connected host
  • A full array of diagnostic LEDs
  • Auto-sensing, 100 / 240 VAC Power Supply
  • Optional:  UK, Continental European power
  • Unidirectional fiber transmission versions available for sensitive security applications.
  • Additional models include: Single-Fiber Bi-Directional single-mode and versions launching ITU specified CWDM transmitter wavelengths
CFT-2067A and CFT-2067B – UTP to Single-Fiber, Bi-Directional Single-Mode
  • Switch for Hard-Setting Full-Duplex or 100BASE-T Autonegotiation for 100 Mbs, Full and Half-duplex operation
  • Internal Auto-sensing, MDI / MDI-X crossover switch for proper Network Interface Card or Switch connections
  • Switch enabled Link Fault Signaling (LFS) – Forwards lost link awareness to each connected host
  • Optional:  UK, Continental European power
  • Auto-sensing, 100 / 240 VAC Power Supply
  • A full array of diagnostic LEDs
CFT-20W-XX – UTP to Single-mode with ITU-specified CWDM wavelengths
  • Switch for Hard-Setting Full-Duplex or 100BASE-T Autonegotiation for 100 Mbs, Full and Half-duplex operation
  • Internal Auto-sensing, MDI / MDI-X crossover switch for proper Network Interface Card or Switch connections
  • Switch enabled Link Fault Signaling (LFS) – Forwards lost link awareness to each connected host
  • Optional:  UK, Continental European power
  • Auto-sensing, 100 / 240 VAC Power Supply
  • A full array of diagnostic LEDs

Click here for Fast Ethernet Copper-to-Fiber datasheet.

Gigabit Ethernet
GFC-55XX – Multi-mode to Single-mode series: 1000BASE-SX to 1000BASE-LX/ZX
GFC-31XX – Single-mode to single-mode series
GFC-5555E – Multi-mode to Extended Reach Multi-Mode over standard fiber
  • Simple plug and go installation
  • Transparent to Flow-Control commands such as PAUSE
  • Dual power jacks for connecting optional, redundant power supply
  • Optional:  UK, Continental European power
  • Auto-sensing, 100 / 240 VAC Power Supply
  • Diagnostic LEDs
  • Additional models include: Long-range single-mode, Single-Fiber Bi-Directional single-mode, Extended Reach multi-mode and versions launching ITU specified CWDM wavelengths
GFC-5537A and GFC-5537B – Multi-mode to Single-Fiber, Bi-Directional Single-mode
GFC-3137A and GFC-3137B – Duplex Single-mode to Single-Fiber, Bi-Directional Single mode
  • Simple plug and go installation
  • Transparent to Flow-Control commands such as PAUSE
  • Dual power jacks for connecting optional, redundant power supply
  • Optional:  UK, Continental European power
  • Auto-sensing, 100 / 240 VAC Power Supply
  • Diagnostic LEDs
GFC-55W-XX – Multi-mode to Single-mode with ITU-specified CWDM wavelengths
  • Simple plug and go installation
  • Transparent to Flow-Control commands such as PAUSE
  • Dual power jacks for connecting optional, redundant power supply
  • Optional:  UK, Continental European power
  • Auto-sensing, 100 / 240 VAC Power Supply
  • Diagnostic LEDs

Click here for Gigabit Ethernet Fiber-to-Fiber datasheet.

Fast Ethernet
CFC-91XX & CFC-92XX – Standard Multi-mode to Single-mode series: 100BASE-FX/FX
CFC-21XX & CFC-22XX – Standard Multi-mode to Multi-mode series: 100BASE-FX/FX
  • Simple plug and go installation
  • Auto-sensing 100/240 VAC power supply
  • Optional:  UK, Continental European power
  • Automatic Link Fault Signaling (LFS) Forwards lost link signals to each connected host
  • Diagnostic LEDs
  • Additional models include: Long-range single-mode, Single-Fiber Bi-Directional single-mode and versions launching ITU specified CWDM transmitter wavelengths
CFC-972XA and CFC-972XB – Multi-mode to Single-Fiber, Bi-Directional Single-Mode
CFC-979XA and CFC-979XB – Single-mode to Single-Fiber, Bi-Directional Single-Mode
  • Simple plug and go installation
  • Auto-sensing 100/240 VAC power supply
  • Optional:  UK, Continental European power
  • Automatic Link Fault Signaling (LFS) Forwards lost link awareness to each connected host
  • Diagnostic LEDs
CFC-21W-XX – Multi-mode to Single-mode with ITU-specified CWDM  wavelengths
CFC-91W-XX – Single-mode to Single-mode with ITU-specified CWDM  wavelengths
  • Simple plug and go installation
  • Auto-sensing 100/240 VAC power supply
  • Optional:  UK, Continental European power
  • Automatic Link Fault Signaling (LFS) Forwards lost link signals to each connected host
  • Diagnostic LEDs

Click here for Fast Ethernet Fiber-to-Fiber datasheet.

Serial RS-232/422/485 to Ethernet Fiber
CSE-D9MX – Serial to Multi-mode fiber
CSE-D9SX – Serial to Single-mode fiber
  • Complies with EIA/TIA-232E, EIA/TIA-422, EIA/TIA-485
  • Diagnostic LEDs for device status:  power, link and receive data
  • Supports asynchronous data transfer rate up to 500 Kbps
  • DTE, DCE push-button for device configuration
  • Straightforward ‘plug-and-go’ installation
  • DIP switch enabled termination resister
  • Supports full and half-duplex modes
  • Available with SC/ST connectors
  • FCC Class A and CE approved
  • 512 KByte memory buffer
  • External power supply

Click here for Serial RS-232/422/485-to-Ethernet Fiber datasheet.

Serial RS-422/485
CSC-4D9MX – Serial to Standard Multi-mode fiber
CSC-4D9SX – Serial to Standard Single-mode fiber
  • Complies with EIA/TIA-422, EIA/TIA-485 specifications
  • Supports asynchronous data transfer rates of up to 120 Kbps
  • LED status indicators (power, link and receive)
  • Easy “plug-and-go” installation
  • Supports 4-wire full and half duplex modes
  • Internal DIP switch enabled termination
  • DTE, DCE selection push-button
  • FCC Class A and CE approved
  • Available ST/SC connectors
  • External power supply

Click here for Serial RS-422/485 Copper-to-Fiber datasheet.

 Serial RS-232 Copper to Fiber
CSC-2D9MX – Serial to Standard Multi-mode fiber
CSC-2D9SX – Serial to Standard Single-mode fiber
  • Complies with EIA/TIA-232, EIA/TIA- 574 & CCITT V.28 standards
  • Supports asynchronous data transfer rate up to 120K
  • LED status indicators (power, link and receive)
  • DTE, DCE setting push-button
  • Allows standalone installation
  • Easy “plug-and-go” operation
  • SC / ST connectors standard
  • FCC Class A and CE approved
  • External power supply

Click here for  Serial RS-232 Copper-to-Fiber datasheet.

Serial RS-232/422/485 to Ethernet Twisted Pair

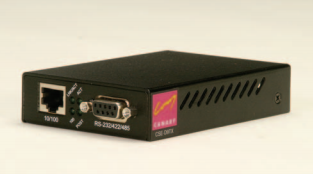

CSE-D9TX – Serial to Unshielded Twisted Pair
  • Auto-sensing 10/100 Mbps Ethernet interface (RJ-45)
  • Supports serial asynchronous data rates to 115.2 Kbps
  • DIP switch enabled termination resister
  • Female DB-9 port supports RS-232/422/485 serial interfaces
  • Supports 4 wire full-duplex asynchronous serial data transmission (RS-422/485)
  • Supports 2 wire half-duplex asynchronous serial data transmission (RS-485)
  • Extended distances up to 1.2 km (24 AWG) using RS-422/485
  • Complies with EIA/TIA-232E / 422 / 485 and EIA/TIA-574
  • IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX)
  • Diagnostic LEDs for device status
  • FCC Class A and CE approved
  • External power supply

Click here for Serial RS-232/422/485-to-Ethernet Twisted Pair datasheet.

Basic Connections
BC-GTXX1 – Gigabit Ethernet Copper-to-Fiber Converters
BC-GSXLX1 – Gigabit Ethernet Fiber-to-Fiber Converters
BC-TFXX – Fast Ethernet Copper-to-Fiber Converters

Gigabit Ethernet Copper-to-Fiber Converters

  • 1000BASE-T Autonegotiation for Full-duplex and Half-duplex operation with Flow-Control and;
  • Switch selectable, Fiber-Port Autonegotiation for common, end-to-end link awareness and Flow-Control, or for blind connection to Gigabit fiber ports on older switches
  • Internal Auto-sensing, MDI / MDI-X crossover switch for Network Interface Card or Switch connections
  • Transparent to Flow-Control commands such as PAUSE
  • A full array of status / diagnostic LEDs

Gigabit Ethernet Fiber-to-Fiber Converters

  • Simple plug and go installation
  • Transparent to Flow-Control commands such as PAUSE
  • A full array of status / diagnostic LEDs

Click here for Basic Connections Datasheet.

10 Mbs
MCC-20XX – Standalone 10Mbs Media Converter
  • Converters are Compliant with IEEE 802.3, 10 Mbs Ethernet standards
  • MCC-2022 Copper-to-Fiber versions are transparent to Full and Half-duplex traffic
  • Link Fault Signaling (LFS) is an option on MCC-2022 Copper-to-Fiber versions (special order)
  • Full array of status / diagnostic LEDs
  • Models with BNC connectors have a switch for internal 50 Ohm Termination
  • Models with Fiber connectors are compatible with 10BASE-FL (FOIRL)
  • Models with UTP connectors have Auto-polarity protection
  • MCC-2000 BNC / UTP versions available with one-way transmission through RJ-45 port for security applications

Click here for 10Mbs Media Converter datasheet.

 10/100 Mbs UTP-to-Fiber Bridging
CLE-106X – Standalone UTP-to-Fiber Bridging Media Converters
  • Converters are Compliant with IEEE 802.3, 802.3u 10/100 Mbs Ethernet standards
  • 148,800 packets/second forwarding rate at 100 Mbs and 14,880 pps at 10 Mbs
  • Switch for hard-setting (Forced) Full-duplex or Half-duplex operation on fiber port
  • Models with Fiber connectors are compatible with 100BASE-FX
  • Converters are transparent to Full and Half-duplex traffic
  • UTP port connectors have MDI / MDI-X crossover switch
  • Full array of status / diagnostic LEDs
  • 512 MAC address lookup table
  • Store-and-forward operation
  • MAC Layer Bridge
  • 5K Byte buffer
  • IEEE 802.1D
  • Auto-sensing, 110 / 230 VAC Power Supply
  • Additional models include: Single-Fiber Bi-Directional single-mode and Extended Reach single-mode are available as special order

Click here for 10/100 Mbs UTP-to-Fiber Bridging datasheet.

 SNMP Manageable 10/100 Mbs Ethernet

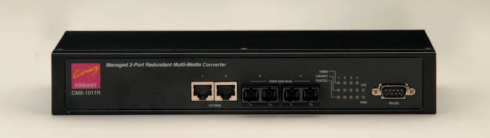

CMX-101X series – Manageable 10/100 UTP-to-Fiber Media Converter
CMX-101XR series – Redundant / Dual path, or Parallel Operation (two sets) 10/100 UTP-to-Fiber ports
  • Canary SNMP management application software (HP Open View© and IBM/Tivoli NetView© capable)
  • Console Port and Telnet with both CLI (Command Line Interface) and Menu driven user interfaces
  • Supports in-band, out-of-band and Web-based management
  • Menu-driven, Web browser user interface.
  • TFTP firmware upgradeable
  • Supports 2K MAC address entries
  • Back-pressure flow control under half-duplex
  • 1MB RAM buffer with non-blocking architecture
  • Full array of LED status and diagnostic indicators
  • Loopback Test (LBK) for instant connectivity confirmation
  • Automatic MDI/MDI-X selection and 10/100 auto-negotiation on the RJ-45 port
  • Link Fault Signaling (LFS) forwards ‘lost link state’, to the next station, in order to force a quicker Spanning Tree Protocol response
  • Internal Auto-sensing 90 – 240 VAC power supply
  • FCC Class A and CE approved

Click here for SNMP Manageable 10/100 Mbs Ethernet datasheet.

For more information, please contact us.
